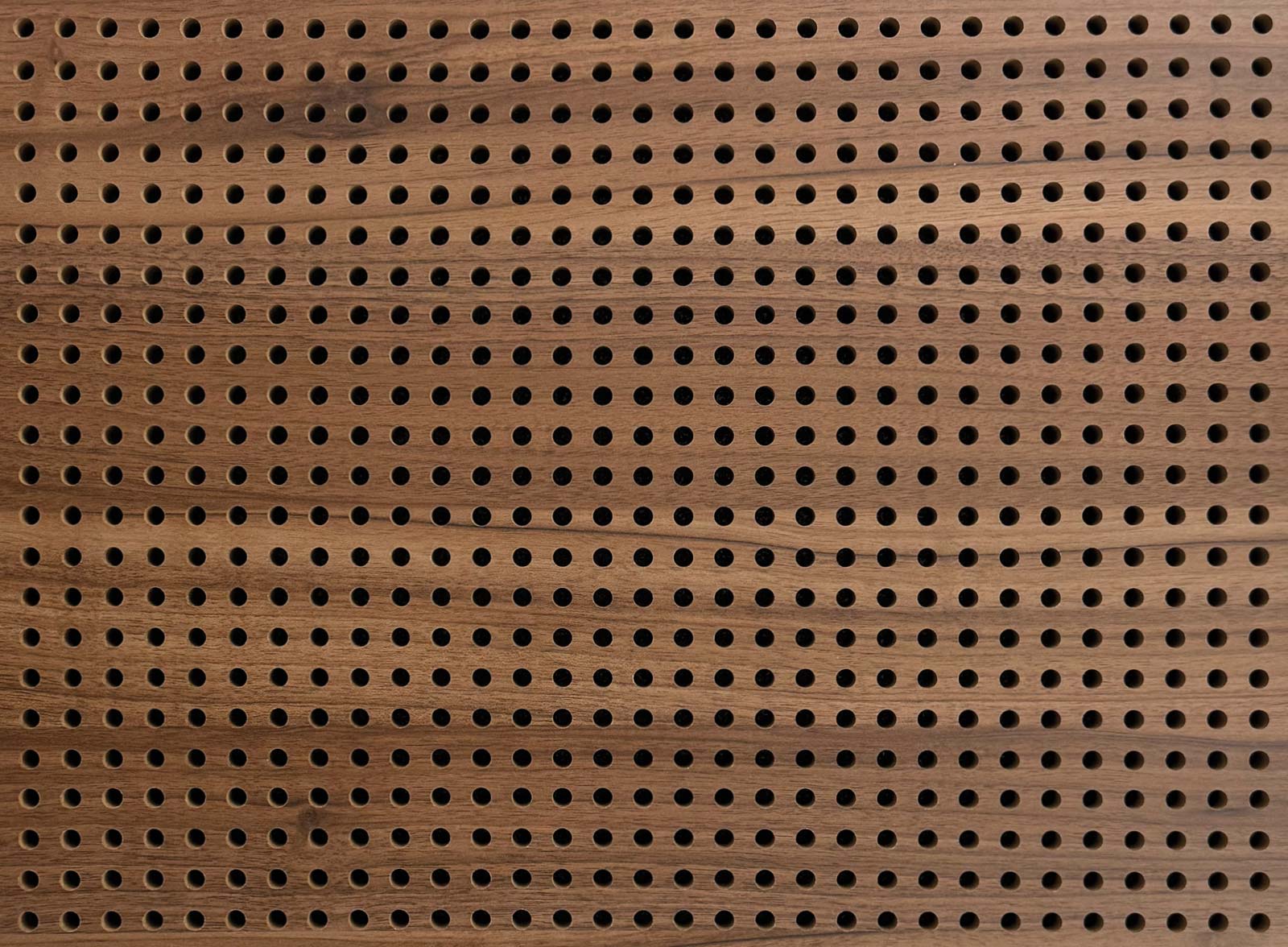

In this case the main characteristic is the 16 mm hole spacing with a perforation diameter of 6 mm. Depending on the percentage of the panel surface that is perforated, the panel absorbs more or less sound. We have to choose the panel that has the sound absorption capacity we need to balance disorders such as reverberation.
Format: panel
Dimensions: 600x600x12 mm
Composition: MDF medium-density fibre board
Weight: 8,53 kg/m2
Density: 750 kg/m3 pared
Acoustic testing: αm=0.60, αw=0.50, NRC=0.55
Application: Walls and ceilings
– MDF Melamine 12 mm
– MDF veneered wood 13 mm
– Phenolic HPL compact 12 mm
Special support materials: Enquire for more details.
Sound absorbent layer: Black acoustic fleece adhered to the back.
Dimensions:
Ceiling: 1200/600x600x12 mm
Wall: 2430/1200/600x600x12 mm
Tolerance:
Width +- 1.5 mm / Length +- 1.5 mm. As per CE mark
We offer a wide range of finishes, including melamine in wooden finishes or solid colours, tints, lacquers and natural wooden veneers. When applied to the different MDF, plywood or phenolic compact base materials, they offer a high-quality end result. All of our profiles for walls and ceilings are quick to install. The properties of these products, along with our FIBERTEX diffusers and textile panels, enable us to offer high-performance acoustic and aesthetic solutions.
Standard melamines:
Standard wooden panels:
Lacquered MDF panels:
Melamine or HPL laminates: Range available in over 100 colours.
Lacquers: Can be customised to any colour from the Pantone, RAL or NCS charts.
