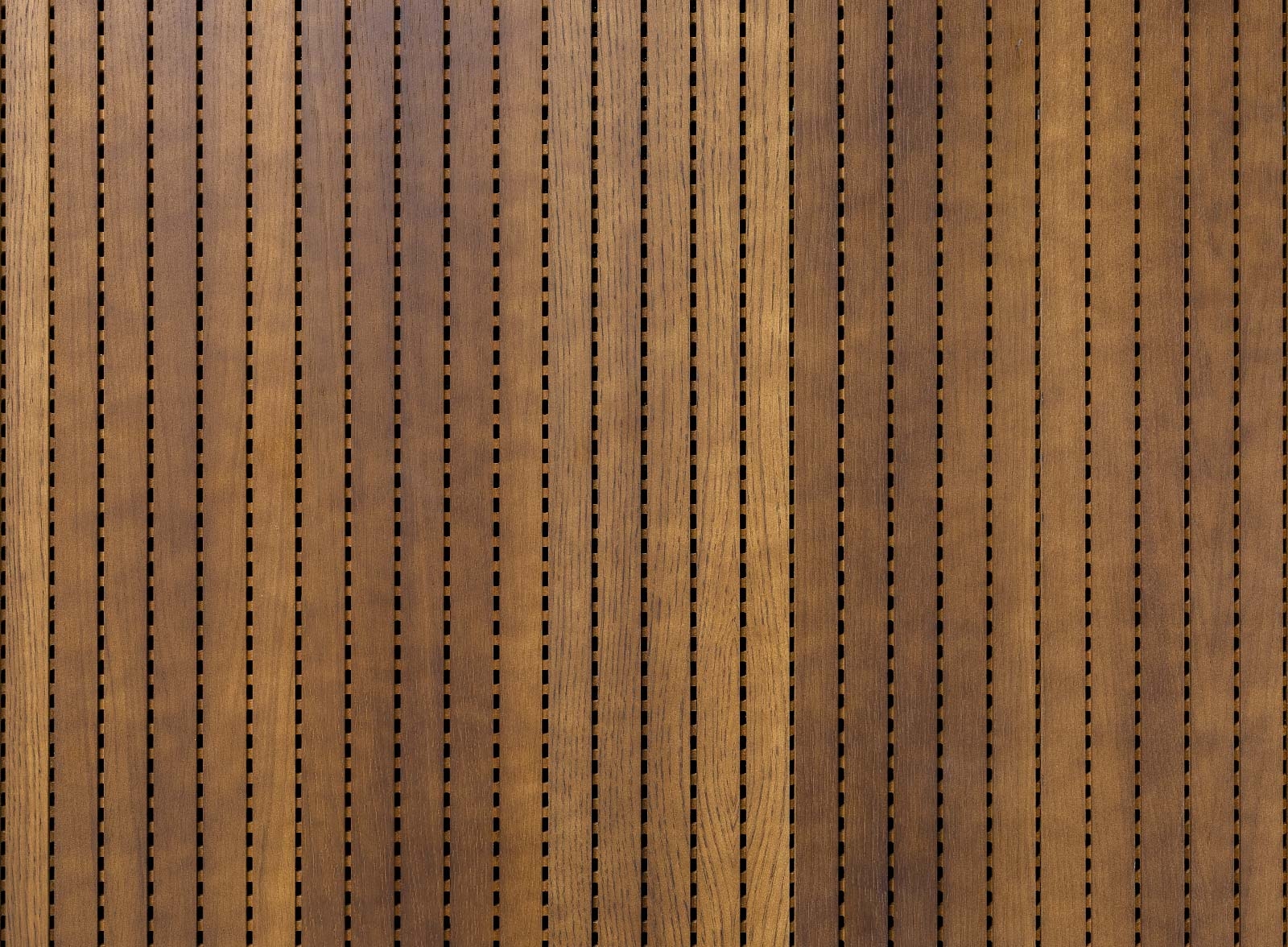

MDF acoustic panel.
Premium technical product designed for spaces that require a high level of acoustic performance: Large spaces, such as theatres and auditoriums, or smaller spaces, such as restaurants, stores or salons
Format: panel
Dimensions: 2430x160x16 mm
Composition: MDF medium-density fibre board
Weight: 10,8 kg/m2
Density: 750 kg/m3
Acoustic testing: αm=0.70, αw=0.70, NRC=0.65
Application: Walls and ceilings
– MDF Melamine 16 mm
– MDF veneered wood 16 mm
– Plywood 16 mm
– Phenolic HPL compact 16 mm
Special support materials: Enquire for more details.
Sound absorbent layer: Black acoustic fleece adhered to the back.
Dimensions:
Ceiling: 1200/600x600x16 mm y 2430x160x16 mm
Wall: 2430x160x16 mm
Tolerance:
Width +-1.5 mm / Length +- 1.5 mm. As per CE mark
We offer a wide range of finishes, including melamine in wooden finishes or solid colours, tints, lacquers and natural wooden veneers. When applied to the different MDF, plywood or phenolic compact base materials, they offer a high-quality end result.
Standard melamines:
Standard wooden panels:
Lacquered MDF panels:
Melamine or HPL laminates: Range available in over 100 colours.
Lacquers: Can be customised to any colour from the Pantone, RAL or NCS charts.
